Tribology coatings for mobility applications - Lesson 2: Highly resilient DLC coatings for extreme applications
Welcome to lesson two of the Ionbond Summer School!
Last time, we learned what a DLC coating is, why it is so widely used in the mobility sector, and which factors are important for its design.
Today, we are diving into highly resilient DLC coatings for extreme applications.
Extremely highly loaded components
Although the loads in typical passenger cars and trucks with internal combustion engines are not insignificant, they are comparatively low compared to those in racing or off-road applications.
Another example of high loads is electric mobility, which is becoming increasingly important, particularly in the passenger car sector but also for trucks.
Due to the greater weight of vehicles and the higher torque and motor speeds, components such as differentials are subjected to greater stress than in lighter vehicles powered by internal combustion engines.
Another challenge is the change in lubrication conditions. We must remember that the tribological system must always be considered holistically.
Therefore, existing coatings must be further developed and optimized to meet the new requirements and compensate for the increasing loads.
Example: Differential Pin in Electric Vehicles
Coating structure

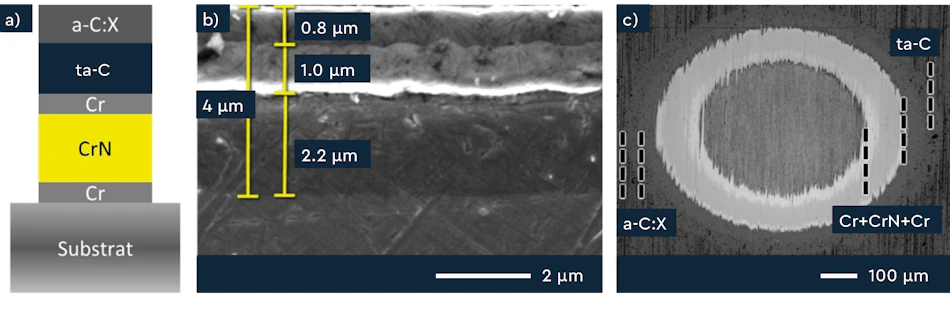

An example of such a customized coating system is shown for the differential pin.
The first layers of the coating structure are similar to the Tribobond 42 system introduced in the previous lesson. The chromium layer serves as an adhesion promoter to the base material.
The crystalline CrN layer combines high hardness with high fracture toughness, making it ideally suited as a support layer by absorbing the applied load and the resulting deformation of the subsequent layers.
This is particularly important because amorphous layers, such as the DLC layer, would otherwise be overloaded. Therefore, the design of this layer is of particular importance in terms of its structure.
The CrN layer is bonded to the carbon-containing layers via an additional Cr or CrC intermediate layer.
Functional DLC layers
This interface system is followed by two layers: a ta-C intermediate layer and a DLC top coating.
The "t" stands for tetragonal, a specific configuration of the DLC layer that, due to its high sp³ content and virtually no hydrogen content, is characterized by very high hardness and wear resistance.
This layer forms the functional layer in tribological contact.
The DLC layer above it serves as a running-in layer, meaning that its primary function is not wear protection but rather the polishing of the counter surface.
This modification is particularly necessary when the counter surface is relatively rough and cannot be smoothed through post-processing - a good example of why a holistic understanding of the tribological system is essential.
Post-treatment
However, in addition to the advantages mentioned above, the coating system also has one disadvantage.
Its production requires a high degree of ionization, which limits the available manufacturing methods.
Cathodic arc evaporation is an established industrial process, but due to the nature of the process, it leads to the formation of so-called droplets on the surface.
To prevent these hard droplets from detaching from the coating during tribological contact and acting as abrasive particles, post-polishing of the surface is absolutely necessary.
