Medthin™ 30 - Instruments

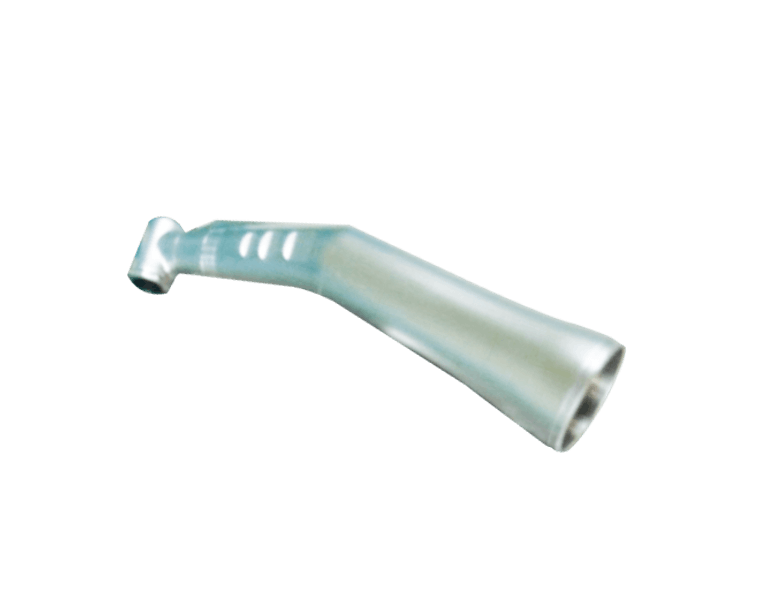

CrN coating for surgical & dental instruments
Medthin™ 30 CrN, has silver-grey color, shows high fracture toughness, wear resistance and adhesion, making it an ideal coating for high impact and load carrying applications. The high resistance to alkaline and acidic cleaning and sterilization cycles, in combination with its other properties makes it a superior alternative to chrome plating on surgical and dental instruments. Due to its low Youngs modulus , the CrN is one of the most ductile PVD coating which can be deposited very thin (less than 1µm) as well as with coating thicknesses that can reach 10µm.
Données techniques
Matériau
Chromium Nitride
Application Référence
Gives color stability to substrates submitted to hundreds of cleaning & sterilization; increases mechanical and wear resistance
Couleur
Silver-grey
Plage d'épaisseur [µm]
0.5 - 10
Dureté, GPa
20 to 30
Frottement par rapport à l'acier (sec)
0.5
Reflection reduction
Low
Chemical resistance
n/a
