Medthin™ 10 - Instruments
TiCN coating for medical instruments & hospital hardware

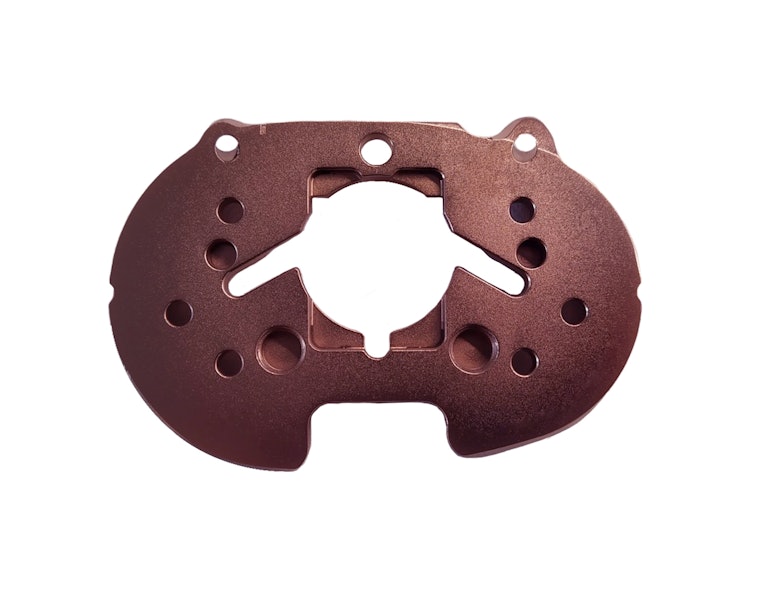

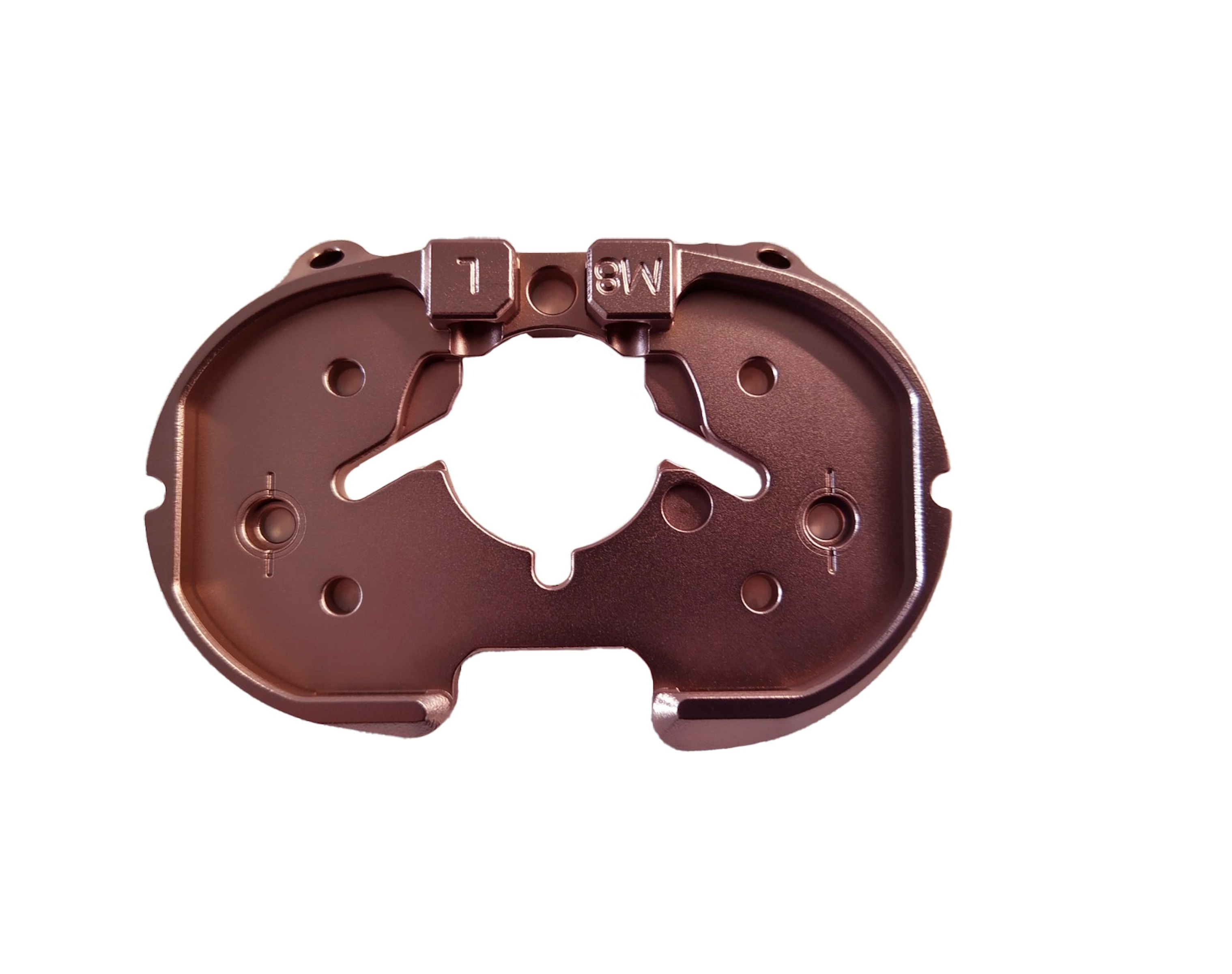

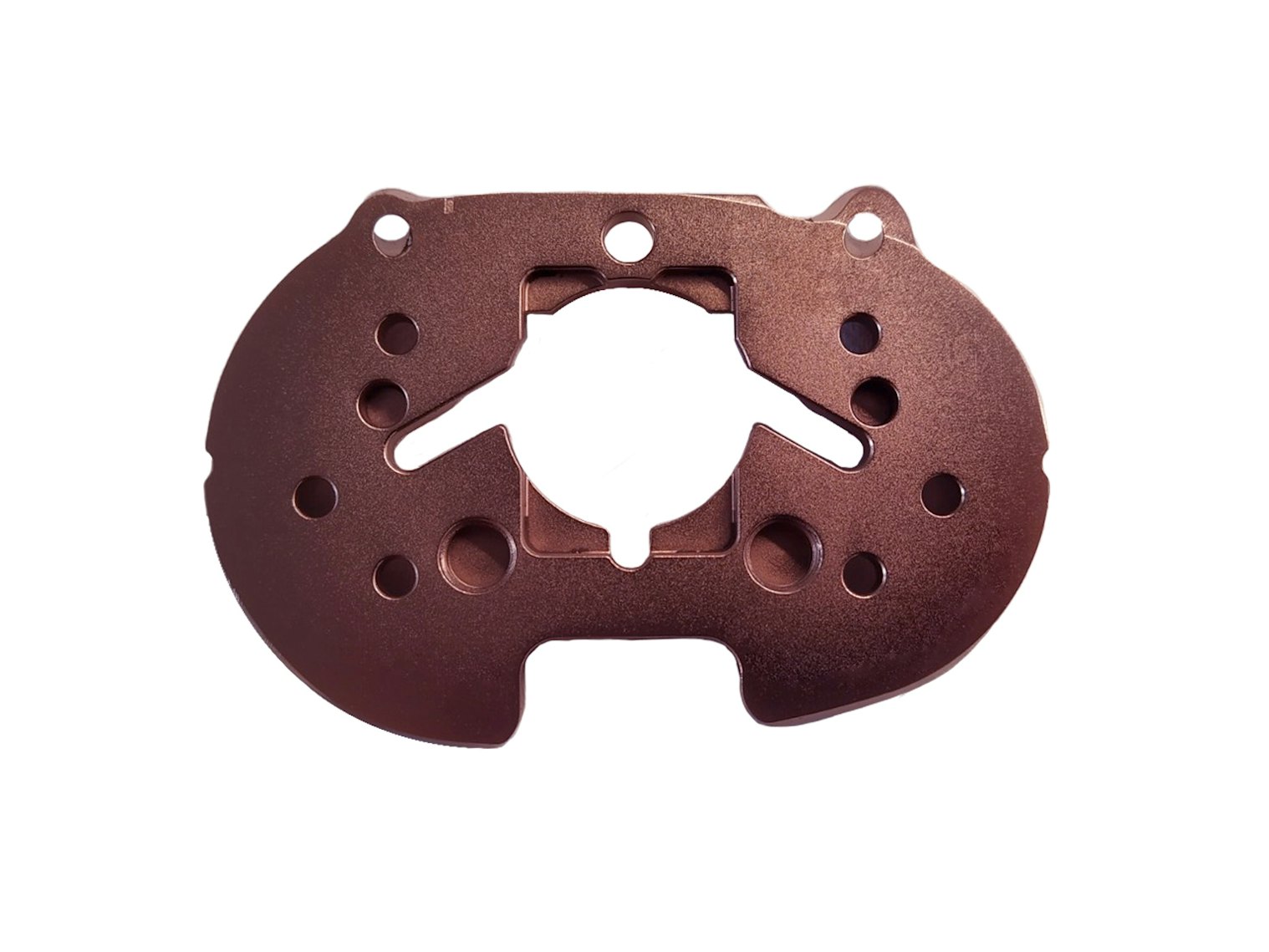

Medthin™ 10 TiCN has carbon inside the TiN cubic matrix strengthening and conferring a pink colour to this coating. TiCN has high wear resistance, high hardness, superior adhesion and is an excellent chemical barrier, which makes it an ideal coating for medical instruments and hospital hardware. Its high resistance to alkaline and acidic cleaning and sterilization cycles makes it a superior alternative to chrome plating on surgical and dental instruments. Medthin™ 10 TiCN is deposited at temperatures between 150°C and 450°C. The wide range of temperatures allows for a variety of materials to be coated by means of adapting the deposition temperatures to suit the substrate materials without impacting geometries.
Technical data
Material
Titanium Carbon Nitride
Application Reference
Color coding of instruments, bone cutting
Color
Pink
Thickness range [µm]
1 - 5
Hardness, GPa
25 to 35
Friction vs. Steel
0.3
Reflection reduction
Medium
Chemical resistance
n/a
