Forming & Molding

Ionbond™ 22

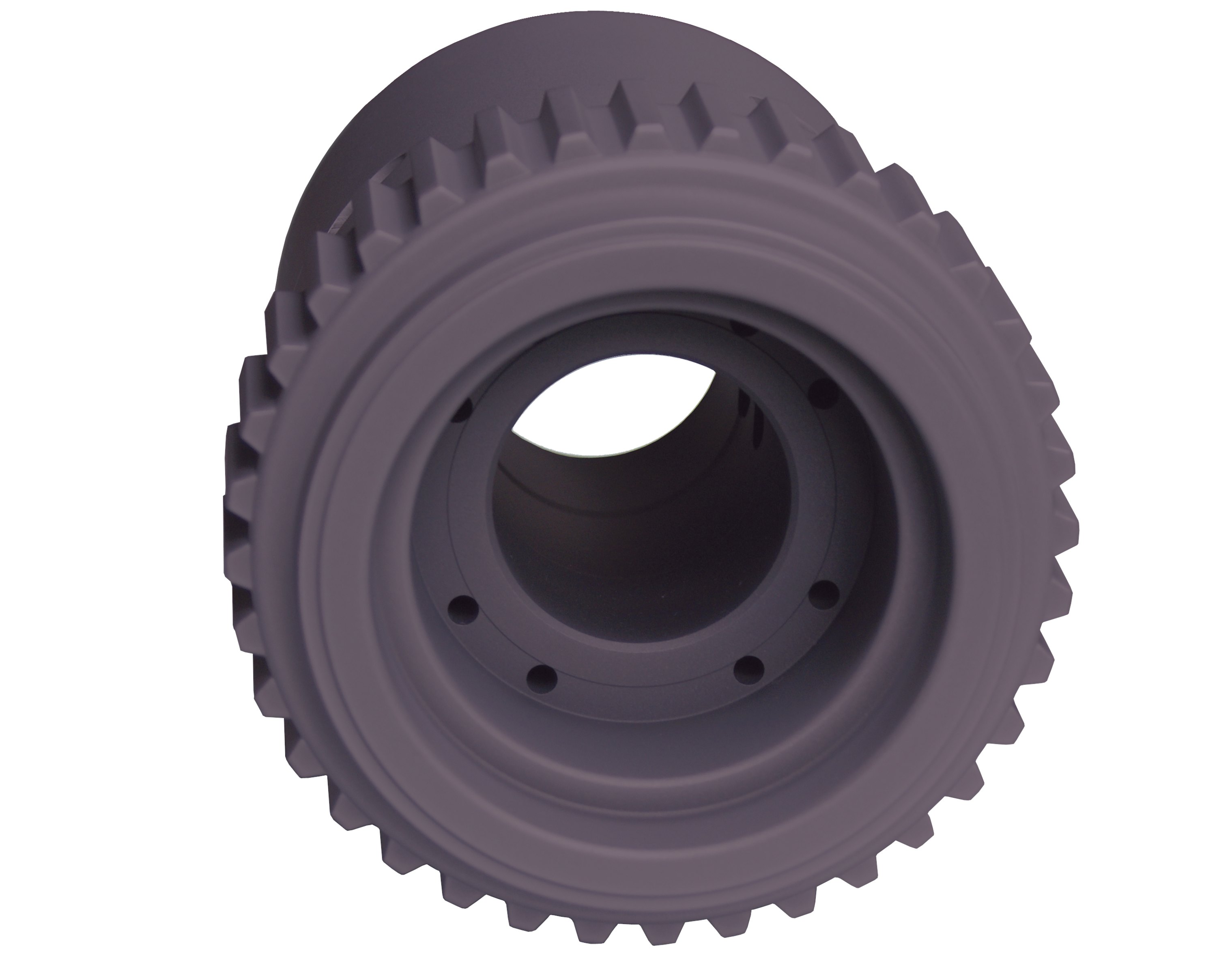

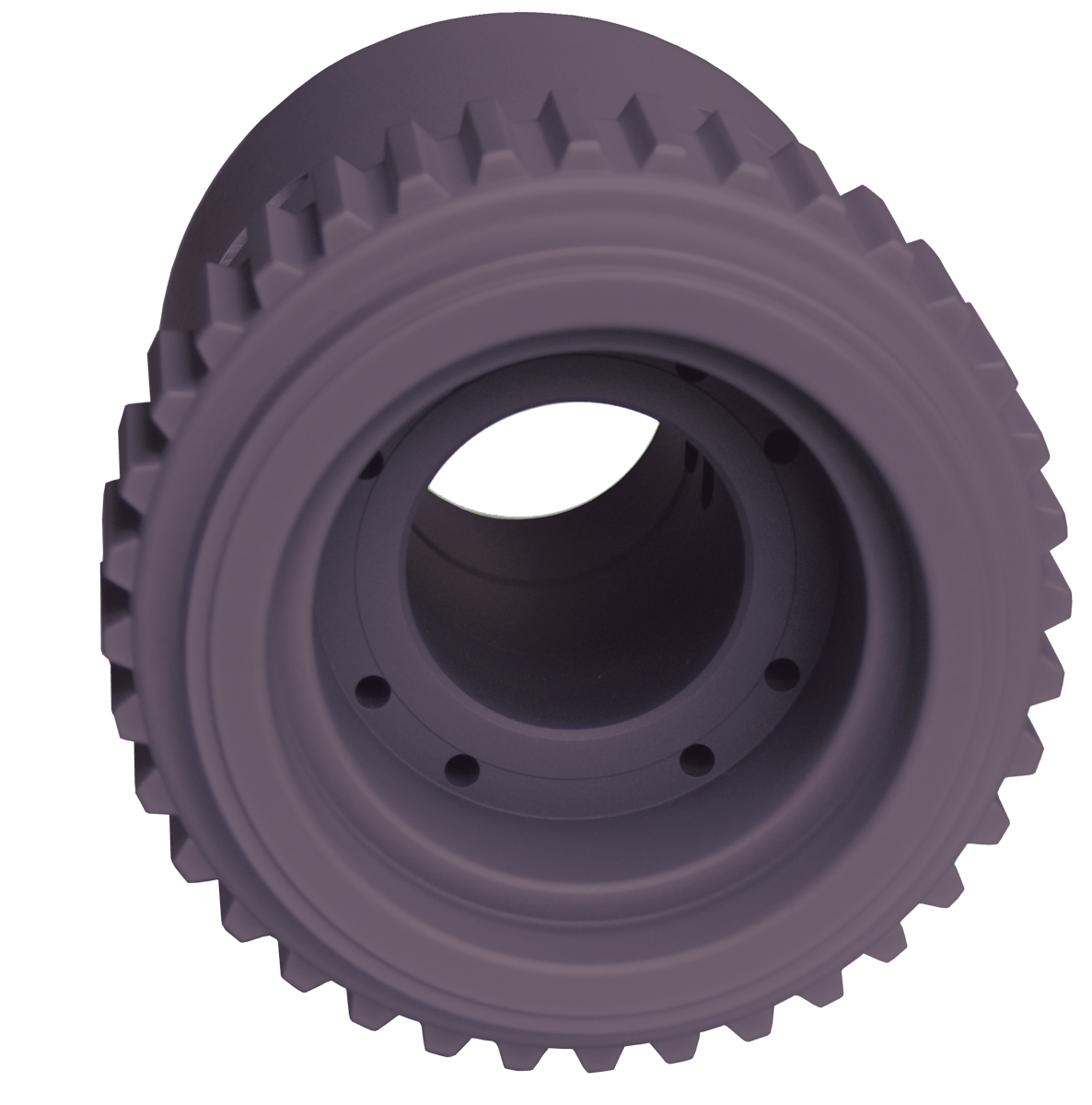

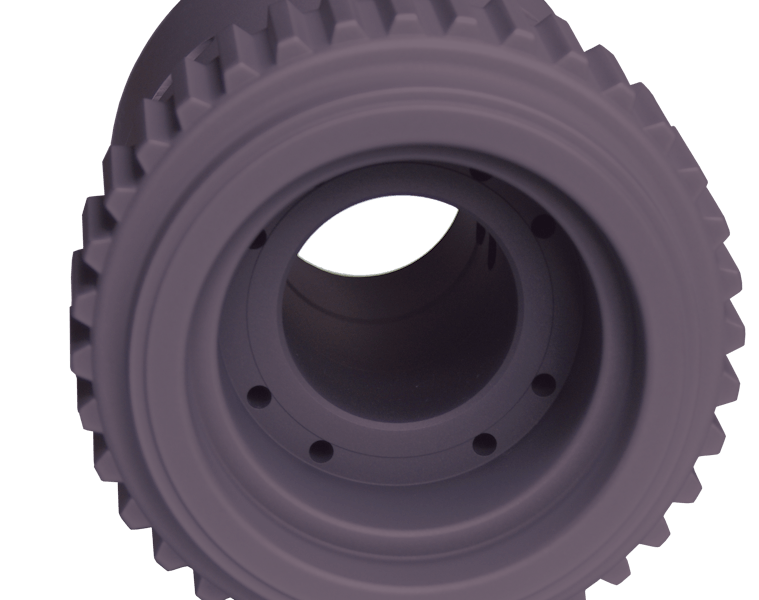

Placeholder for Extrusion Hot Forming Maximizer ColorExtrusion Hot Forming Maximizer Color
Placeholder for Microsection Ionbond 22Microsection Ionbond 22

Technical data

Material AITiCrN
Technology PVD Arc
Thickness range [µm] 2 - 8 µm
Microhardness, HV 0.05 3200
Friction vs. Steel 0.55
Service Temperature 850°C
Process Temperature 450 - 550°C
Color Grey-purple
Forming & Molding
