Semiconductors

Sustain Moore’s law and contribute to never-stopping process of miniaturization and efficiency improvement of microelectronics with Ionbond coatings.

Placeholder for Ionbond Industrial PortraitIonbond Industrial Portrait
Placeholder for SemiconductorSemiconductor

Coating solutions for semiconductors

Semiconductor applications are often unique, calling for equally unique solutions. Depending on the actual application, standard or fine-tuned Tribobond™ and Ionbond™ CVD coatings are offered. In the latter case, Ionbond engineers carefully analyze application requirements and then propose coating solutions.

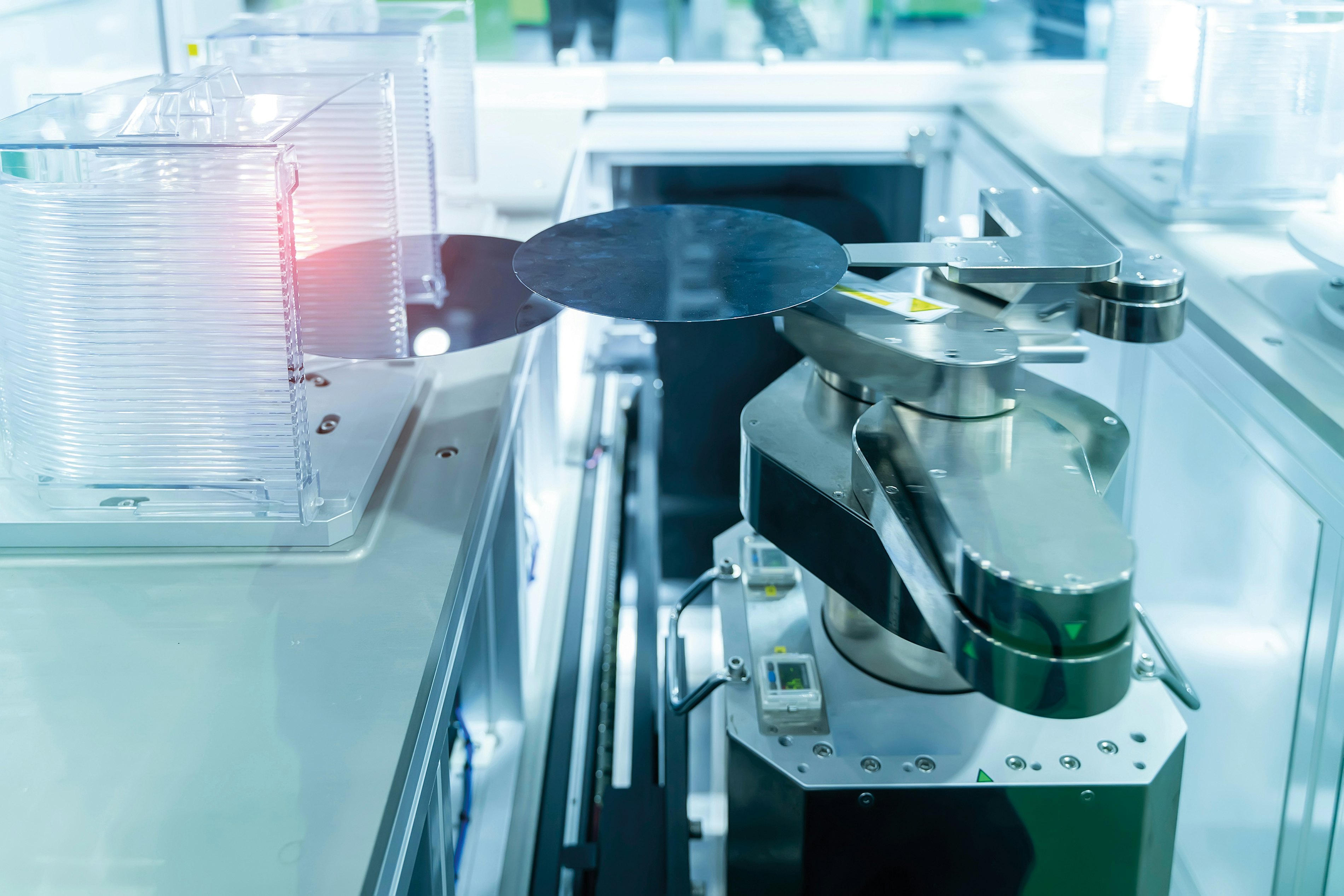

Placeholder for Silicon waferSilicon wafer

Wafer handling

The primary function of coatings on wafer handling hardware is to prevent generation of wear debris that can contaminate the processing environment. Tribobond coatings provide ideal solutions for such challenges, due to their high wear resistance. These coatings allow efficient sealing of critical surfaces, thus helping to maintain a particulate-free operation in the long term.

Placeholder for Vacuum SemiconductorVacuum Semiconductor

Vacuum coatings

Some of the newer semiconductor processes use vacuum, which brings additional challenges for tribological elements. In response to this, IHI Ionbond and IHI Hauzer Technocoating engineers have developed a specialty diamond-like carbon (DLC) coating, Tribobond 55, designed for operation in vacuum and other dry environments. This coating boasts an extremely low coefficient of friction in these conditions, which is impossible to achieve with regular films.

Placeholder for Ionbond Industrial PortraitIonbond Industrial Portrait

Diffusion barrier

In some unique semiconductor machinery, IonbondCVD chemical vapor deposition (CVD) coatings can produce diffusion barriers to protect components against corrosion and erosion. These coatings are typically applied on inner surfaces of the components, enabling their reliable operation.

Placeholder for Electrical dischargeElectrical discharge

Ionbond customized coating solutions

Need coatings with highly specific properties? Whether electrical properties, a particular resistivity range or the ability to withstand extremely high voltages. For these applications, Ionbond engineers work closely with the customer, offering standard, customized or specially designed solutions.

Premium coatings for industrial components

Ionbond’s coating portfolio for Industrial Components is specifically designed to accommodate applications in diverse industries, including aerospace, transportation, power generation and general engineering.

Industrial Components
Placeholder for Microsection Tribobond 01Microsection Tribobond 01

Tribobond™ 01

Traditional coating for a wide range of component applicationTribobond™ 01 TiN is arguably the oldest and most popular of PVD coatings. Aesthetically pleasing gold color and excellent mechanical prop…

Read more
Industrial Components
Placeholder for Microsection Tribobond 15Microsection Tribobond 15

Tribobond™ 15

Wear resistance coating for high temperature applicationsIonbond’s Tribobond™ 15 TiAlCrN coating possesses an impressive combination of properties; high hardness, excellent toughness and high impact …

Read more
Industrial Components
Placeholder for Microsection Tribobond 15Microsection Tribobond 15

Tribobond™ 20

Wear resistance coating for high temperature applicationsIonbond’s Tribobond™  20 AlTiN coating is designed to provide wear and oxidation protection at temperatures of up to 850°C.  It possesses an i…

Read more
Industrial Components
Placeholder for Microsection Tribobond 30Microsection Tribobond 30

Tribobond™ 30

High temperature resistant coating with excellent toughnessTribobond™ 30 CrN has a good combination of properties; high hardness, excellent toughness, high wear and impact fatigue resistance. Tribobo…

Read more
Industrial Components
Placeholder for Microsection Tribobond 31Microsection Tribobond 31

Tribobond™ 31

Low stress wear resistant coating with smooth surfaceSub-stoichiometric Tribobond™ 31 Cr2N  features  lower  residual  stress  than  many  other  coatings from the Tribobond™ portfolio,  including Cr…

Read more
Industrial Components
Placeholder for Ionbond Industrial PortraitIonbond Industrial Portrait

Tribobond™ 34

Wear resistant coating with a top oxide layerTribobond™ 34 CrON features standard CrN coating with a top layer of CrON. Presence of the oxide film on the surface adds additional functionalities to th…

Read more
Industrial Components
Placeholder for Microsection Tribobond 40Microsection Tribobond 40

Tribobond™ 40

DLC-based coating for highly loaded industrial and automotive componentsIonbond’s Tribobond™ 40 DLC, also designated as a-C:H:W, is one of the widely used coatings for industrial and automotive compo…

Read more
Industrial Components
Placeholder for Piston Pin coatingPiston Pin coating

Tribobond™ 41

DLC coating with superior sliding propertiesIonbond’s Tribobond™ 41 DLC a-C:H:W + a-C:H coating has been used for high volume automotive production for many years. It combines good running-in propert…

Read more
Industrial Components
Placeholder for Microsection Tribobond 42Microsection Tribobond 42

Tribobond™ 42

DLC coating for highly loaded industrial components and high volume automotive applicationsIonbond’s Tribobond™ 42 DLC, CrN + a-C:H, coating is engineered for very highly loaded components. It combin…

Read more
Industrial Components
Placeholder for ADLC coated applicationADLC coated application

Tribobond™ 43

DLC coating for industrial components with unique propertiesIonbond’s Tribobond™ 43 DLC (a-C:H) is a pure DLC coating,  which is widely used for boosting performance of tools and various precision co…

Read more
Industrial Components
Placeholder for Microsection Tribobond 46Microsection Tribobond 46

Tribobond™ 46

DLC coating for highly loaded applications with rolling contactsIonbond’s Tribobond™ 46 DLC, CrN + a-C:H:W has a top layer similar to Tribobond™ 40; however it is deposited on CrN underlayer as oppos…

Read more
Industrial Components
Placeholder for Piston Pins coating servicePiston Pins coating service

Tribobond™ 48

Hydrogen-free DLC coating for high temperature applicationsTribobond™ 48 ta-C is a hydrogen-free DLC coating with an increased temperature resistance of up to 400 °C compared to 250 °C for hydrogenat…

Read more
Industrial Components
Placeholder for Piston Pins coating servicePiston Pins coating service

Tribobond™ 55

Special coating for vacuum and dry environmentsTribobond™ 55 is a specialty coating, which was developed to address tribological applications in dry environments, such as dry gas or vacuum. Regular D…

Read more
Industrial Components
Placeholder for Ionbond Industrial PortraitIonbond Industrial Portrait

Tribobond™ 66

Corrosion resistant aluminium coatingAluminum coatings offer remarkable improvement in corrosion resistance. In this case, the coating acts as a sacrificial anode in galvanic corrosion, thus protecti…

Read more
Industrial Components
Placeholder for Microsection Ionbond CVD ICMicrosection Ionbond CVD IC

Ionbond™ CVD

Ionbond™ CVD Coatings for Components ApplicationsOne of the limitations of the PVD and PACVD technologies is their inability to promote coatings into inner surfaces, like holes and cavities with high…

Read more
