Coating portoflio

Forming & Molding

Factsheet

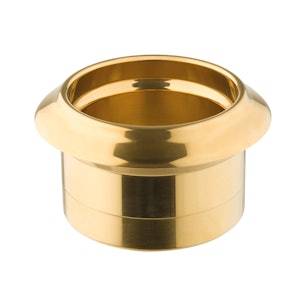

Deep drawing - aluminum can nose punch
 Ionbond™ 01 		TiN PVD Arc 2 - 4 µm 2800 0.55 500°C 425°C Gold - -
Forming roll
 Ionbond™ 10 		TiCN PVD Arc 2 - 4 µm 2800 0.2 300°C 450°C Blue-grey or pink - -
Extrusion Hot Forming Maximizer Color
 Ionbond™ 22 		AITiCrN PVD Arc 2 - 8 µm 3200 0.55 850°C 450 - 550°C Grey-purple - -

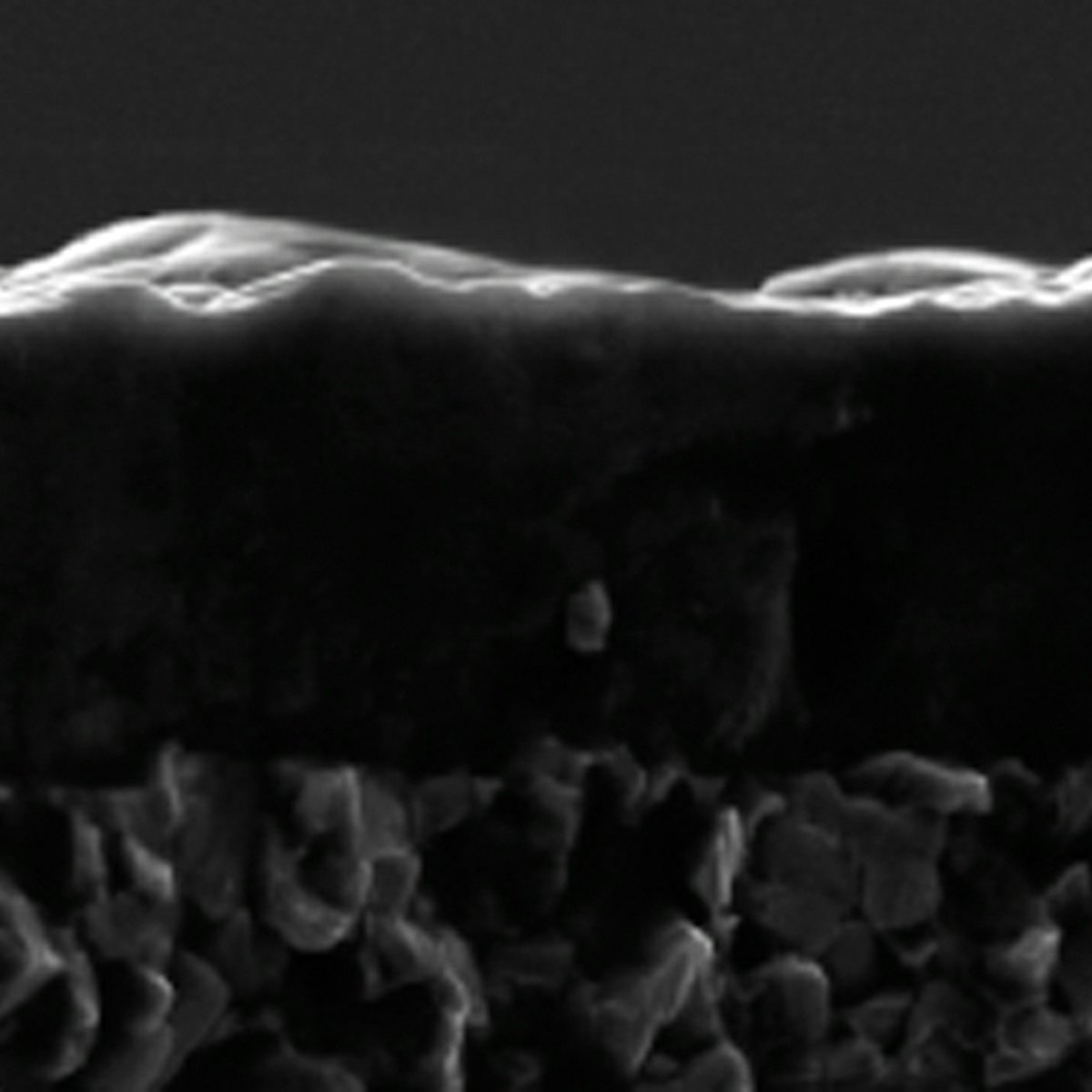

Microsection Ionbond 25
 Ionbond™ 25 		AICrN PVD Arc 2 - 4 µm 3000 0.55 1050°C 450 - 550°C Grey - -

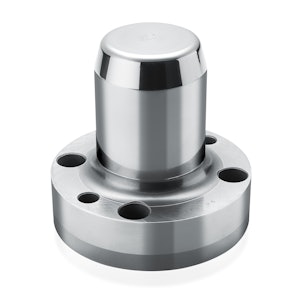

Hot forming
 Ionbond™ 30 		CrN PVD Arc 2 - 6 µm 2300 0.55 700°C 150 - 400°C Silver - -
Ionbond 347 coated samples
 Ionbond™ 347 		CrN/CrON PVD Arc 3 - 5 µm > 3000 0.8 ≥ 800 °C < 300°C Dark grey - blue < 0.03 µm (< 0.8 µm) very good – HF1 to HF2 (depending on tooling material)

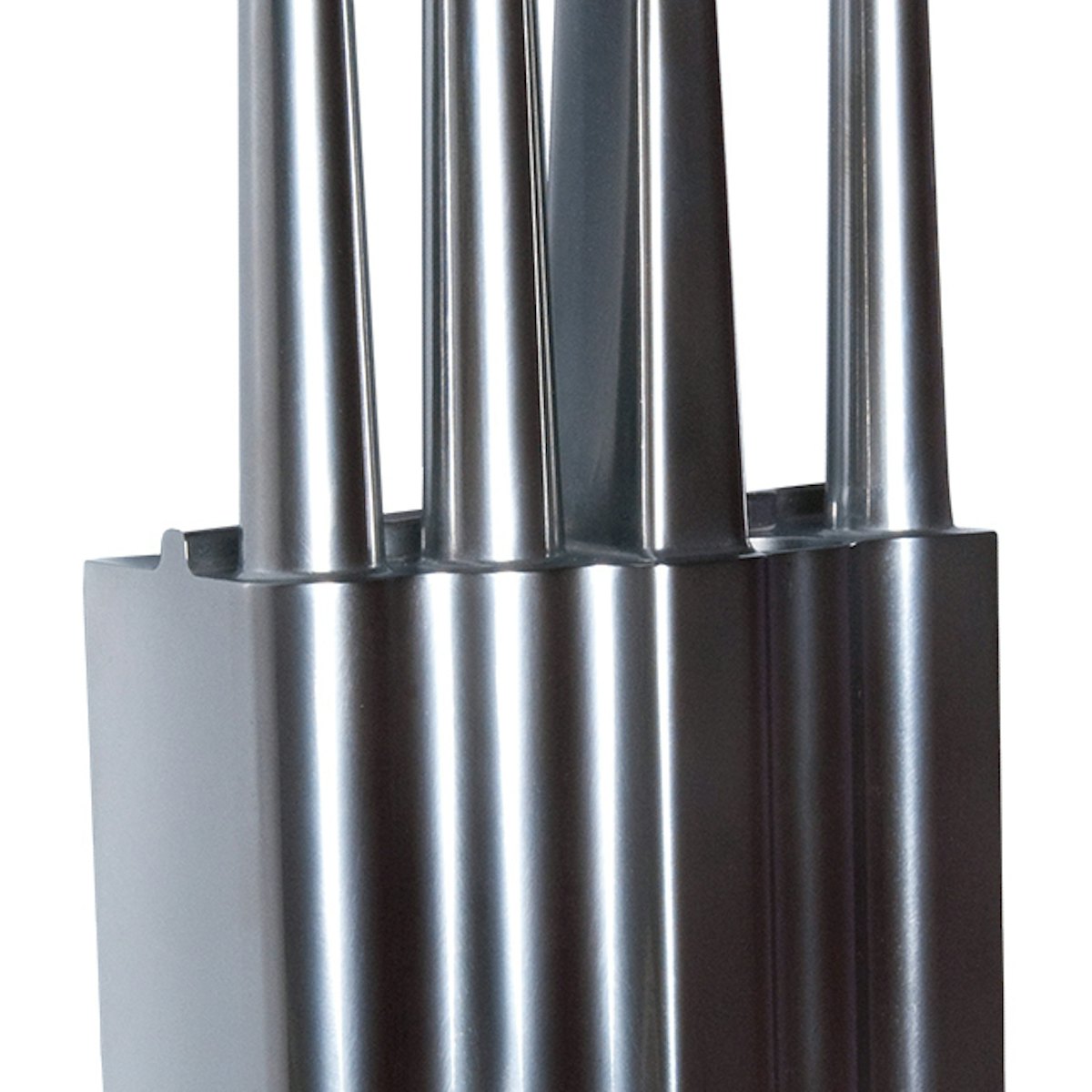

Ionbond 35 sample s
 Ionbond™ 35 		CrWN PVD Arc 5 - 8 µm 3000 - 3200 0.30 800°C 350°C Silver - -

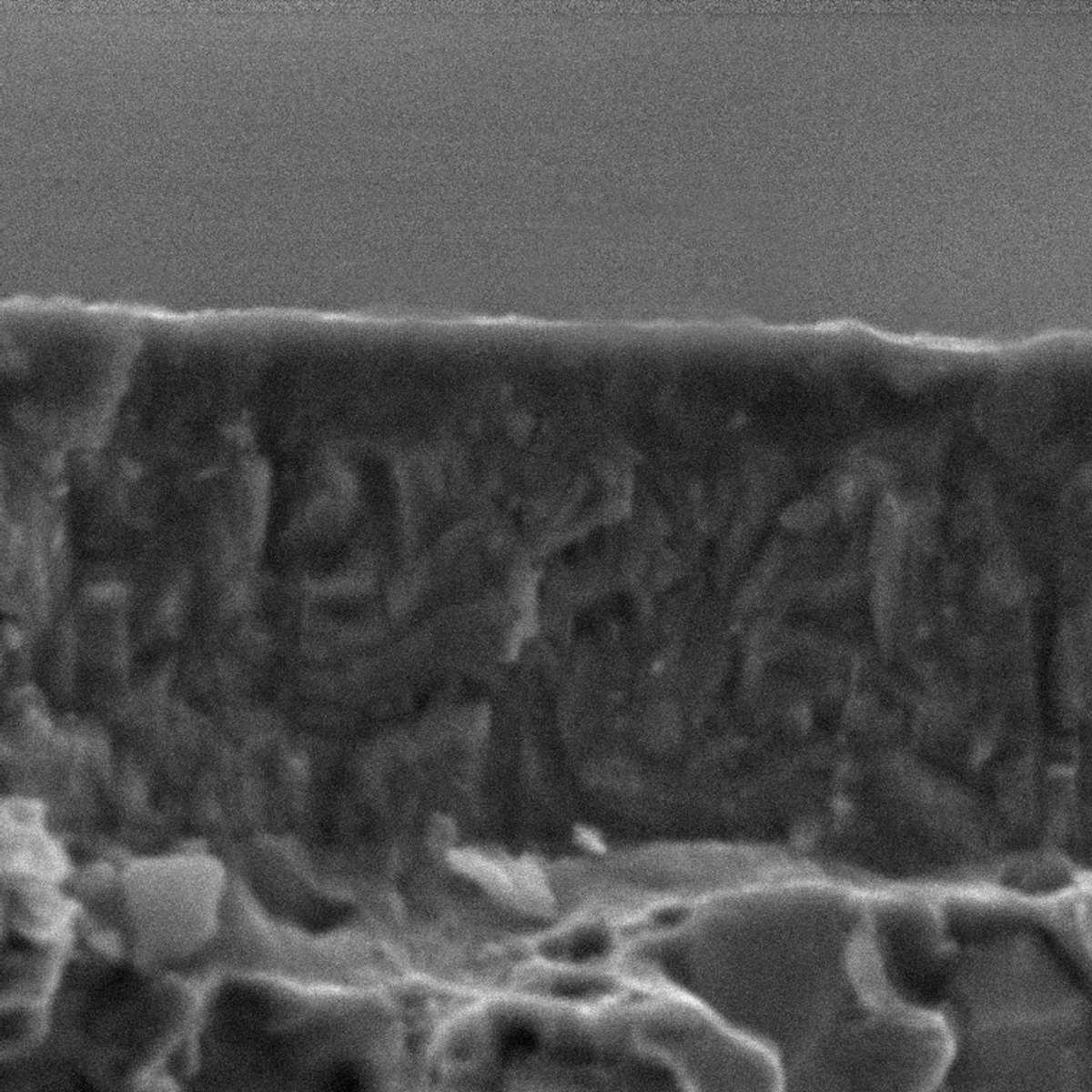

Microsection Ionbond 357
 Ionbond™ 357 		CrWN/(CrW)xOy PVD Arc 4 µm – 6 µm > 2,700 against Al2O3: at room temperature = 0.5 | at T 800 °C = < 0.35 ≥ 800 °C 450 °C Blue-grey < 0.1 µm (< 1.9 µm) HF2 to HF3
CD mold
 Ionbond™ 40 		a-C:H:W PVD Arc 4 - 6 µm 1600 0.20 350°C 160 - 250°C Black - -
Plastic Mold DLC
 Ionbond™ 41 		a-C:H:W + a-C:H PVD UBM / Arc 3 - 5 µm 2000 - 2800 0.10 300°C 160 - 250°C Black - -

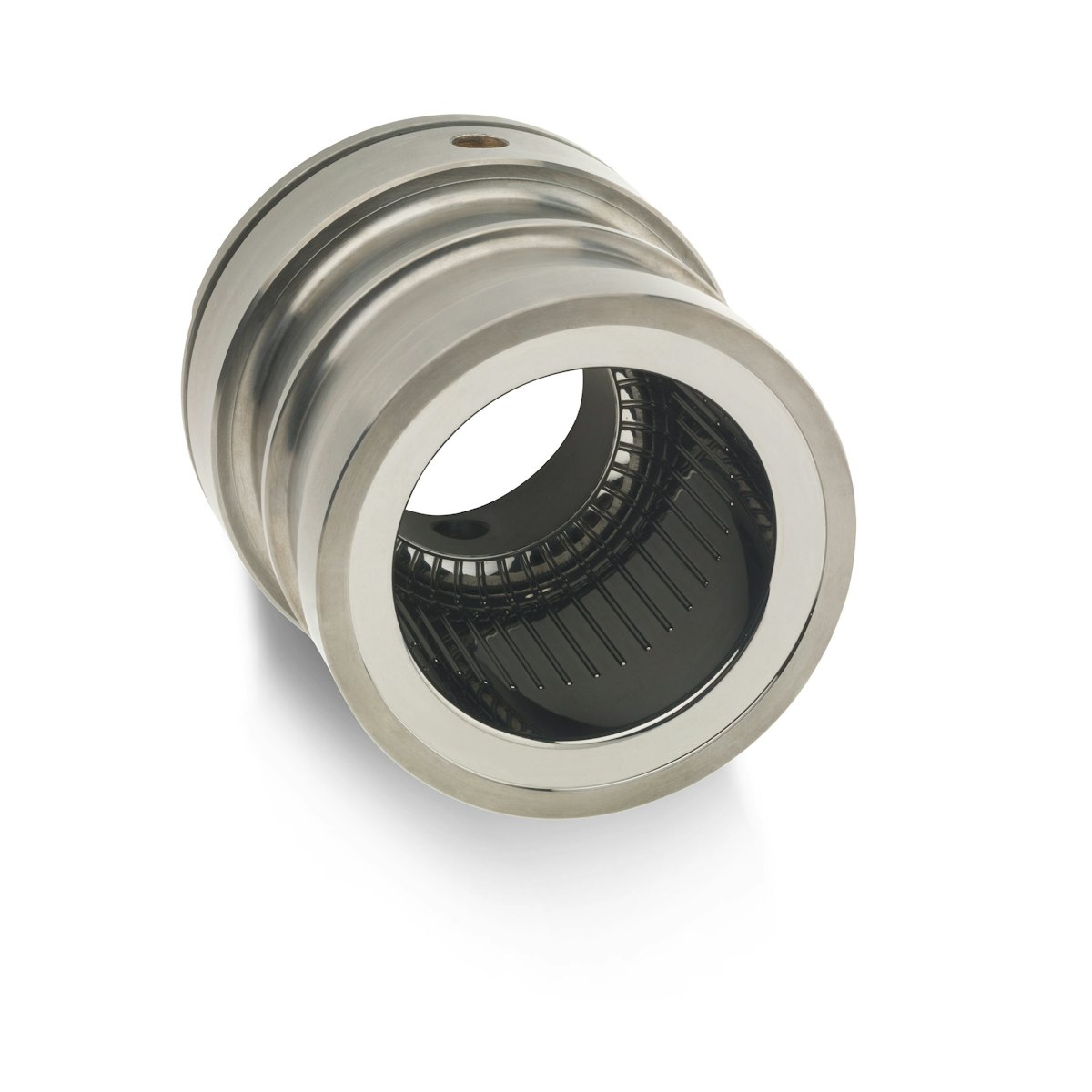

Bottle cap mold shadow
 Ionbond™ 42 		Cr + CrN + a-C:H UBM / PACVD 2 - 5 µm 2000 - 2800 <0.10 300°C 250°C Black - -
Powder compaction transp
 Ionbond™ 62 		TiCN + MoS2 PVD Arc / UBM 2 - 4 µm 3000 / 2000 0.06 500°C 425 / 150°C Grey - -
Concept 90 7 shadow transp
 Ionbond™ 90 Concept 		Proprietary PVD Arc 6 - 8 µm 3800 0.12 300°C 400°C Silver-grey - -

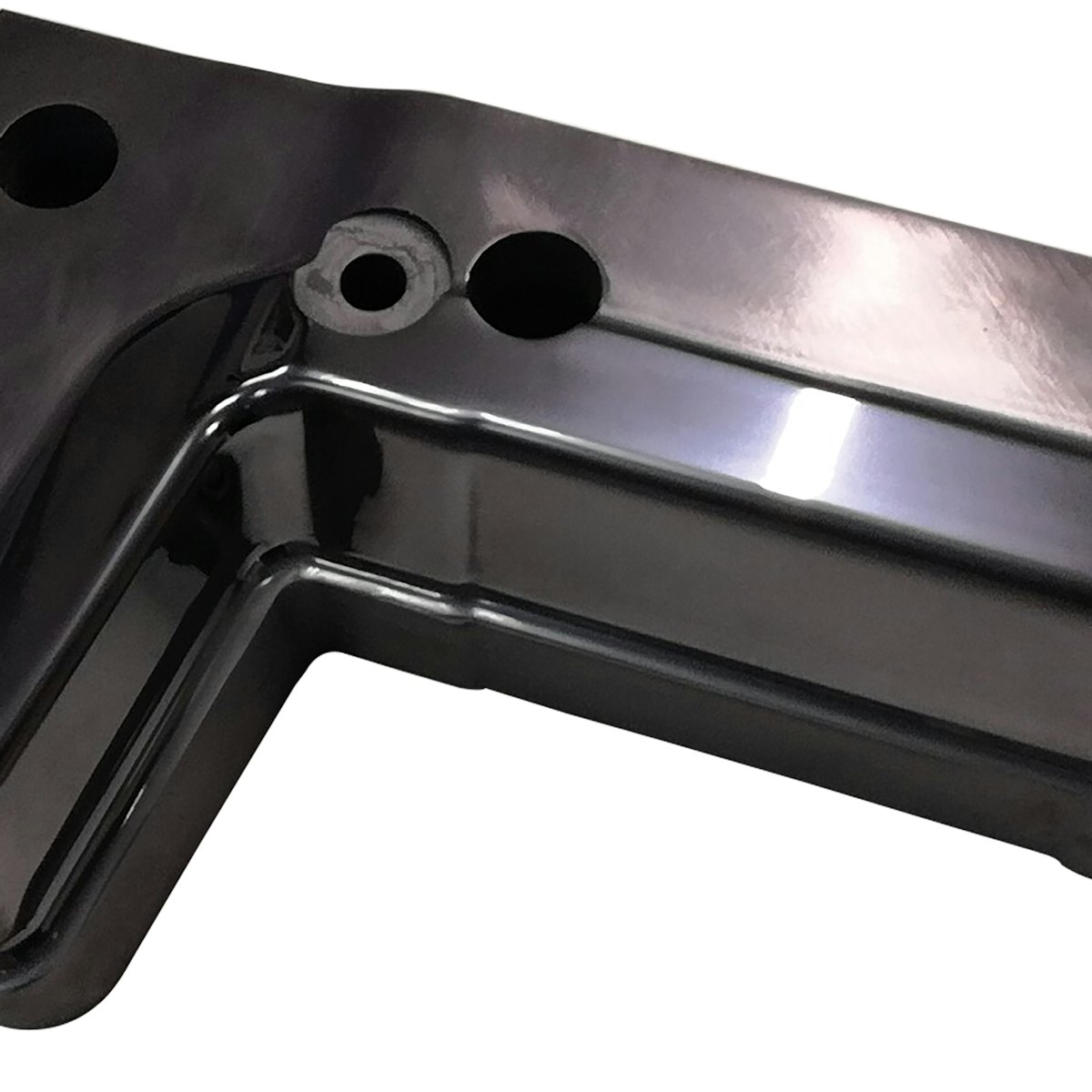

Ionbond 95 hot forging transp
 Ionbond™ 95 Concept 		Proprietary PVD Arc 6 - 8 µm 3200 0.50 1050°C 450°C Grey - -

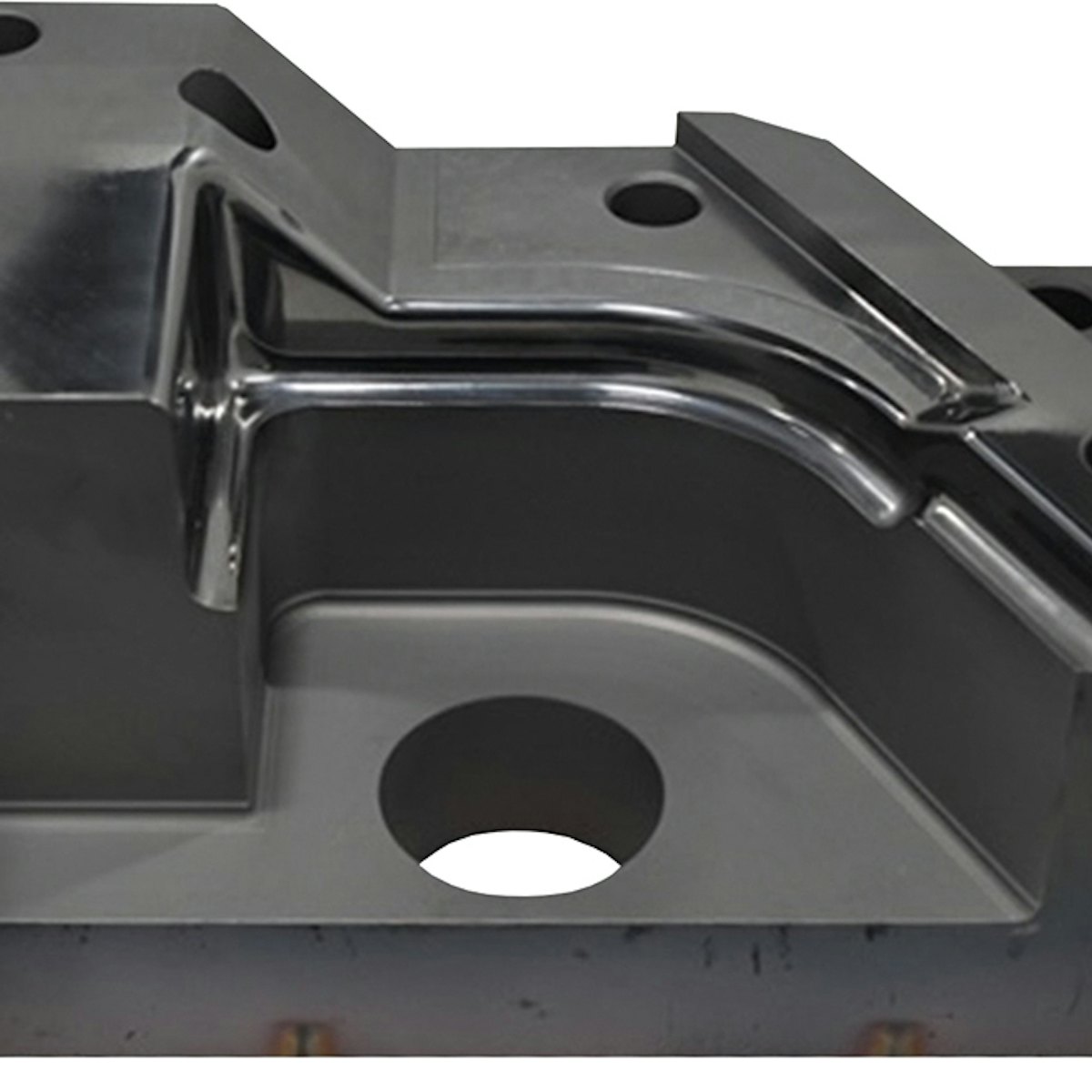

Ionbond 962 Metal forming
 Ionbond™ 962 		Ionbond™ 90 (proprietary) + MoST (MoS2 + Ti) PVD Arc / UBM 6 - 8 µm 3800 + 580 N2 atmosphere = 0.03 | Dry in Ambient atmosphere = 0.12 450°C 400°C + 150°C grey < 0.03 µm (< 0.8 µm) very good – HF1 to HF2

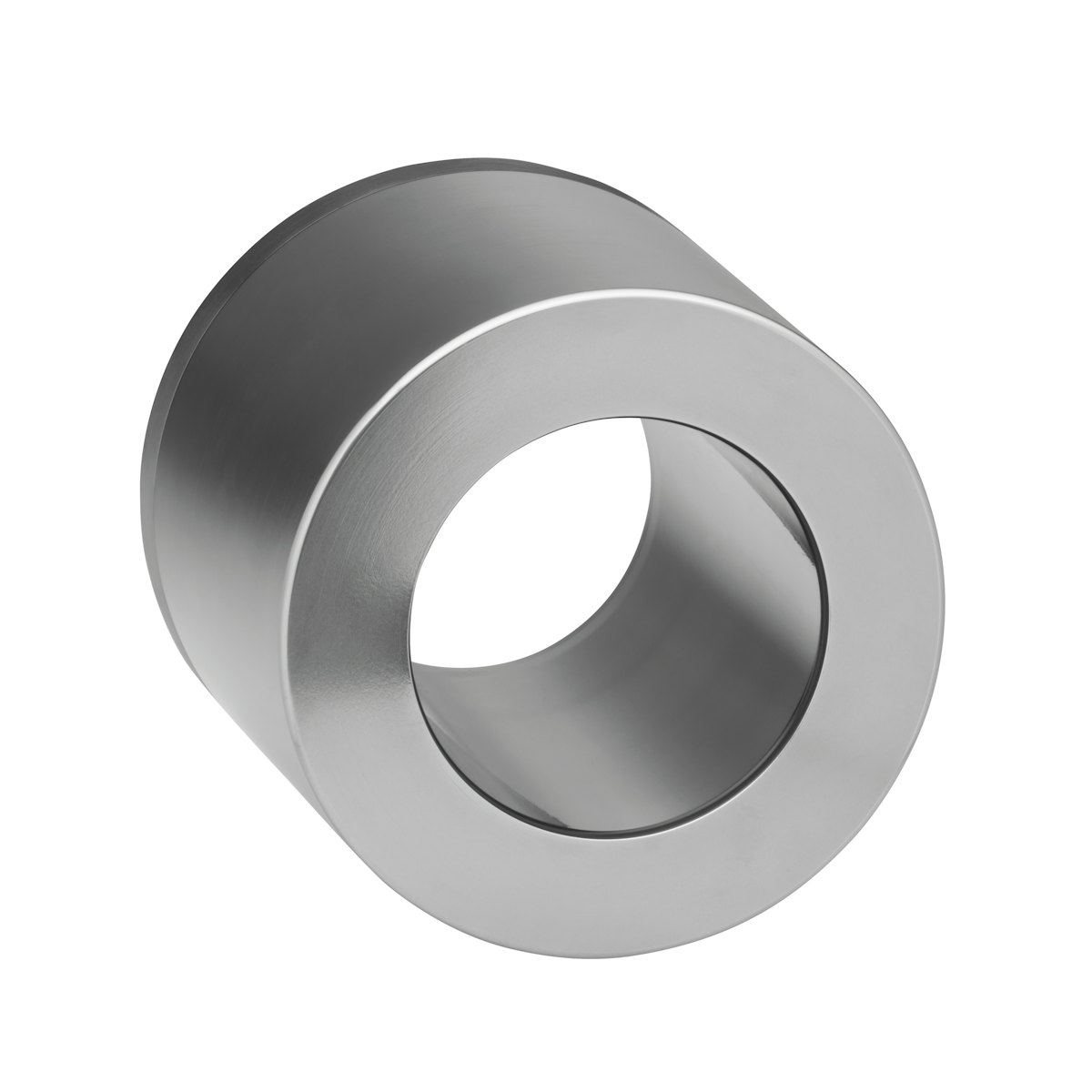

Extrusion die
 Ionbond™ CVD 02 		TiC CVD 6 - 10 µm 3200 0.20 300°C 1000°C Grey - -
IB CVD 10 Ti CN transp
 Ionbond™ CVD 10 		TiN - TiCN - TiN CVD 4 - 6 µm 2800 0.30 800°C 800 - 1000°C Gold - -
Cold forging punch
 Ionbond™ CVD 13 		TiCN - TiC - TiN CVD 6 - 10 µm 2600 - 2800 0.30 800°C 1000°C Gold - -

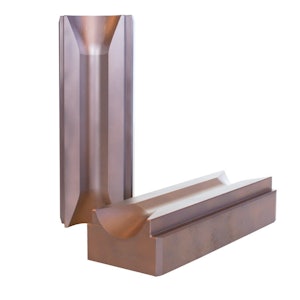

Ionbond CVD 29 transp

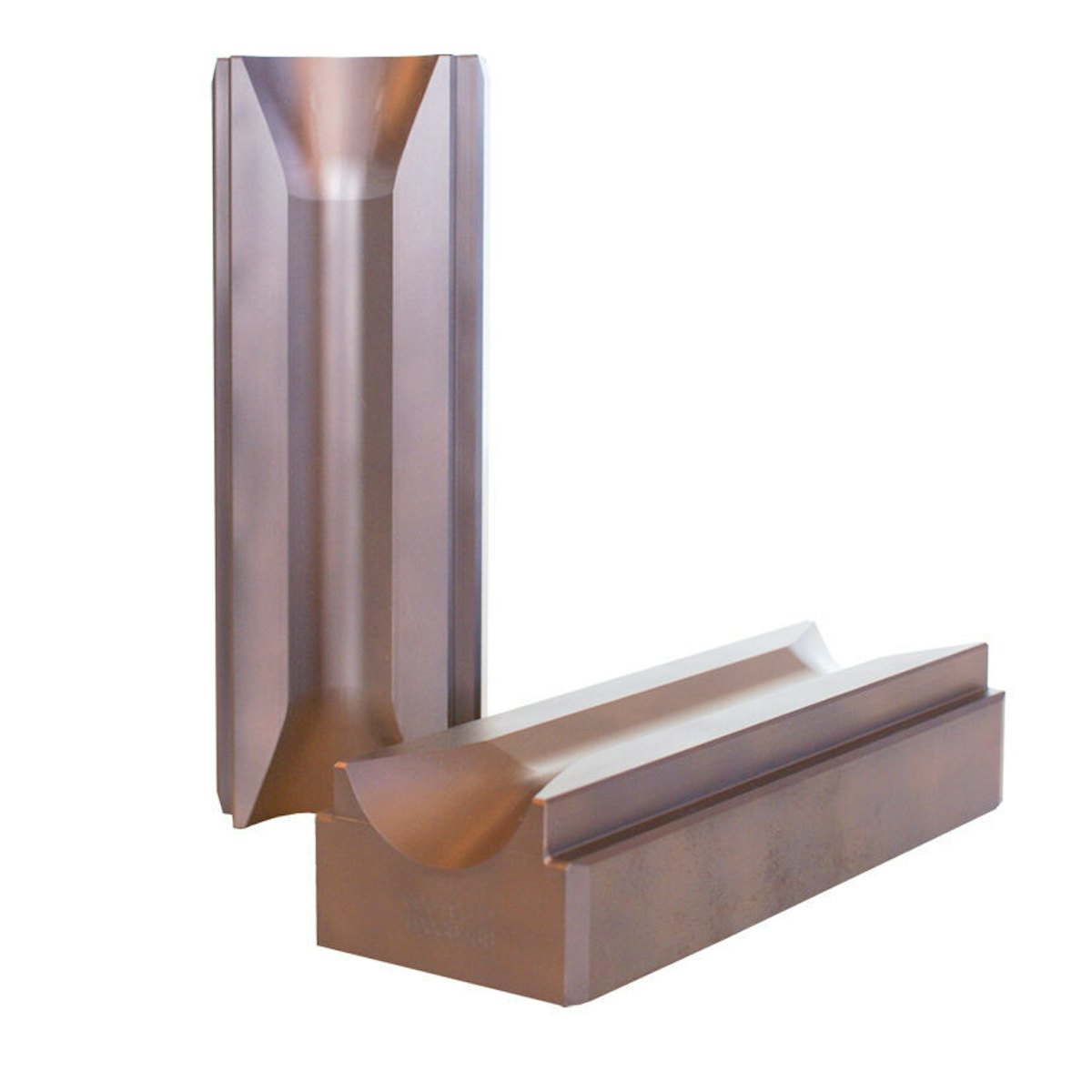

 Ionbond™ CVD 29 		α Al2O3, κ Al2O3 CVD 8 - 15 μm 3000 0.30 1200 °C 1000 °C black-maroon - -

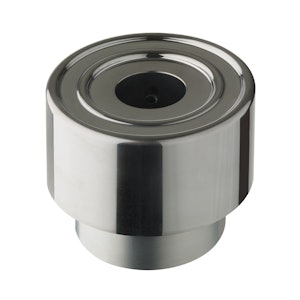

Orbital forming tool white
 Ionbond™ CVD 62 		TiC - MoS2 CVD (TiC) / UBM (MoS2) 8 - 10 μm 3200 / 2000 0.06 500 °C 1000 °C / 150 °C grey - -
LQ Laserstrahlhaerten 1
 Laser Beam Hardening 		- - - - - - - - - -
Aluminium laser welding
 Laser Welding 		- - - - - - - - - -
Plasma Nitriding
 Plasma Nitriding / Duplex Coatings 		- - - - - - - - - -

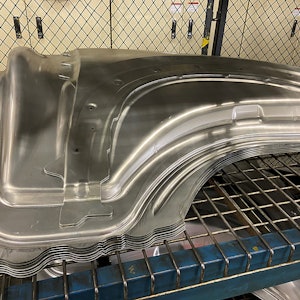

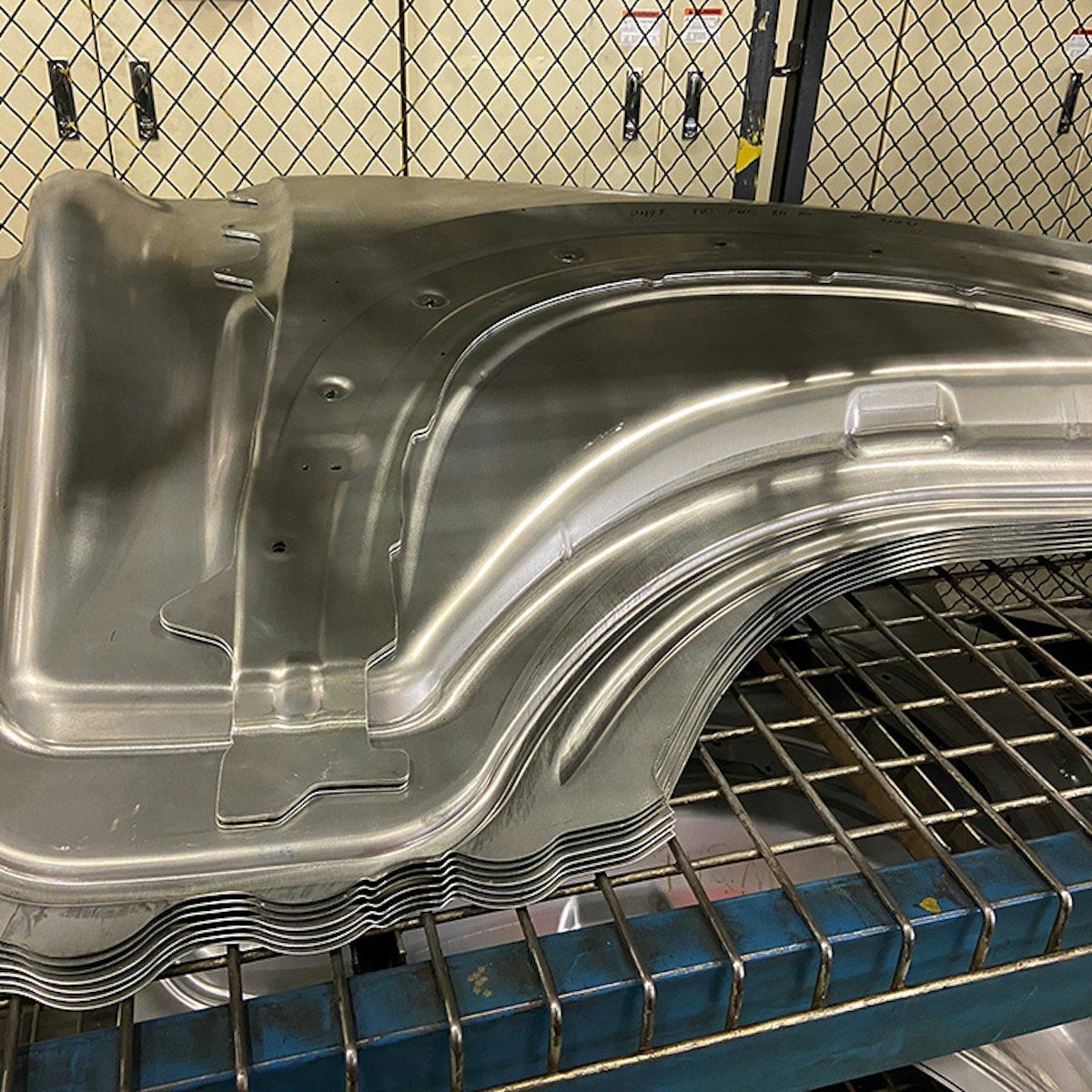

FM Tetrabond sheet metal
 Tetrabond™ 		ta-C proprietary PVD Arc 0.5 - 2 μm >3000 <0.15 500 °C <300 °C Rainbow - dark grey - black <0.04µm (<0.7µm) very good - HF1 to HF2
