Medthin™ 42 - Implants
Probably the best (hard) coating for implants

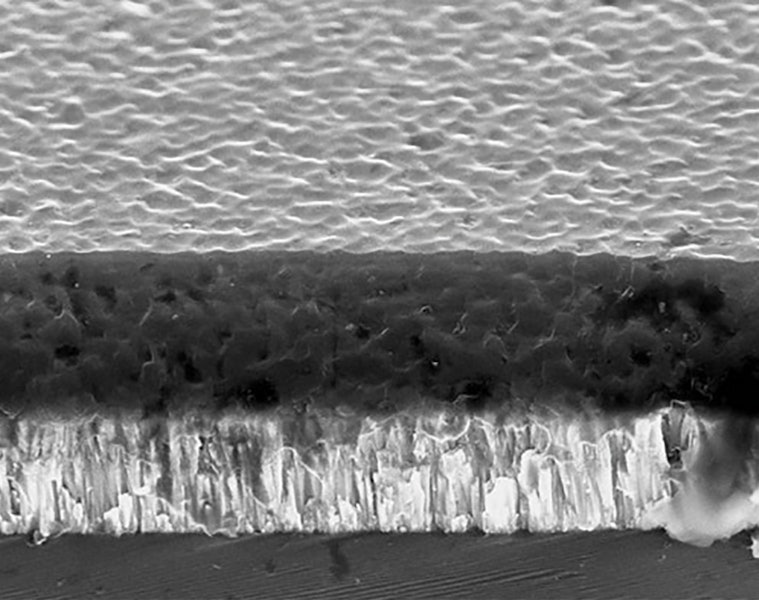

Medthin™ 42 coating combines high adhesion strength with low UHMWPE wear and nearly no ion release from the implant substrate reaches the body fluids from the patient. The coating is applied with thickness of about 5µm and it has adhesion strength to metal substrates higher than 1.5GPa. Chromium Nitride + Diamond Like Carbon (top layer) for implants, is deposited with an hybrid system, a combination of PVD high energy sputtering and Plasma Assisted Chemical Vapor Deposition Technologies (PACVD). The top layer is amorphous and has excellent sliding characteristics with extremely low friction coefficients against many materials including ceramic.
The coating coverage is rather uniform on external surfaces. Ionbond can currently deliver coating service of “Medthin™ 42 DLC on Implants” from America, Europe and Asia.
Technical data
Material
Top layer: hydrogenated amorphous carbon (a-C:H) Base Layer: Chrom.-Nitride
Application Reference
on implants made of Titanium, TAV, CoCrMo, 316 LVM, all SS
Color
Black
Thickness range [µm]
3 - 7
Hardness, GPa
20 - 28
Adhesion (depending on material)
>1500
Wear reduction
>65%
Roughness Ra (Rz) as deposited
<50
